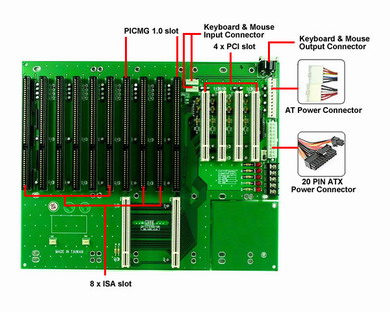

ISA X 8, PICMG X 2 & PCI X 4

• Dual slot PCI/ISA for the CPU board.
  PCI Conforms to PICMG 1.0 Specification

• Four ISA slots for full-size ISA boards.
  ISA Conforms to IEEE P996 Specification.

• PCI Compliant with the following Specification
  Three 5V 32bit PCI slots for full-size boards on the Primary bus.
  5V/3.3v 32-bit PCI slots for full-size boards on the secondary bus;
  Supports PCI Local Bus Specification Revision 2.2、Advanced Configuration
  Power Interface(ACPI)、PCI Power Management Revision 1.0

• Power Connector Supports
  ATX Standard Power connector: Max 5A for 20-pin
  Support AT Standard Power connector: Max 5A for 12-pin
  Support +12V、-12V、-5V、3.3V Power Connector

• Supports Three Fan Power、Power signal status

• 4-layer PCB to reduce noise and keep lower impedance

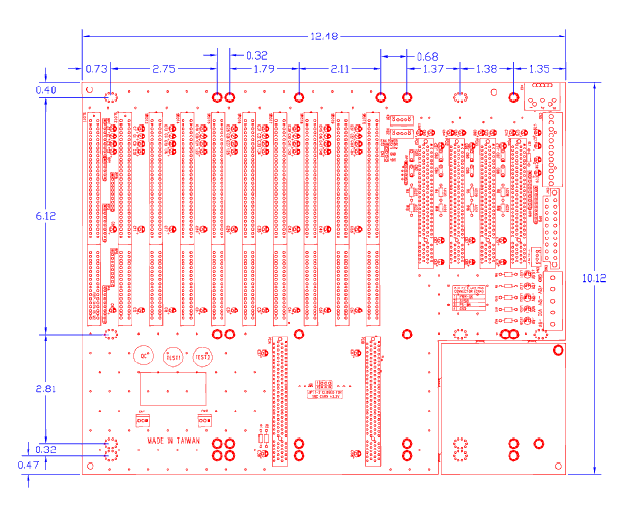

• Dimension: 317 x 257 (mm)
