LCDR8U20-08  8U Rackmount 20"  Widescreen TFT LCD Monitor , Made In U.S.A. , TAA Compliant                          .

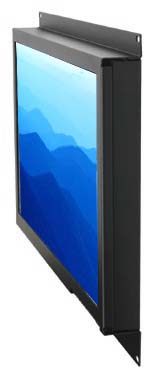

                                 8U Rack mount  20" Wide Format  TFT  LCD Monitor Panel

 Made in U.S.A. , TAA Compliant

                                                                     * Click on image for enlarged view
      Free Ground Shipping *Click for details

  Click on Image for enlarged view
Features :
- 20” Wide format TFT LCD display with 1600 x 900 resolution.
- Mounts in 8U of vertical rack space within 19” rack width.
- 16:9 aspect ratio features a widescreen viewing area.
- Steel front panel construction with a durable paint finish.
- LED back light for energy savings.
- HDCP compliant , TAA Compliant
- Color : Black



Dimensions 19.0" (W) x 14.0" (H) D = 2.3" (1.7” in front of rack mounting rails)
Display Type a-si TFT/TN.
Resolution 1600 x 900 maximum, 16.7M colors.
Compatibility: PC/Windows, Macintosh.
Response Time 5ms (typ).
Brightness 250 cd/m2 typ
Contrast Ratio DC 10,000,000:1 (1000:1)
Viewing Angle Horizontal: 170 degrees
Vertical: 160 degrees
Input Signal R.G.B. analog, DVI (with HDCP)
Video Connector 15 pin D-sub, DVI-D.
On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), OSD H & V position, Input Select, Color Temp., Reset. Auto Adjust
Plug & Play DDC2B
Power AC Input 100-240VAC
Frequency 50/60 Hz
Power Consumption 25 Watts Max
Humidity Operating: 10% to 80% RH (max)

Ordering  information

Part Number  Description
 8U Rack  20" Wide Format TFT LCD Monitor , black
